Fisher V150 Ball Valve
Using a segmented V-notch ball, the valve combines good control performance with relatively high flow capacity. It is commonly installed in process control loops where a globe valve may create excessive pressure loss or where process media can cause buildup around conventional valve trims.
Key Features
V-Notch Ball Design
The segmented ball provides a modified equal-percentage flow characteristic, allowing stable control across a broad operating range.
High Capacity Flow Path
Unlike a lot of globe valves, the V150 gives you higher flow capacity without losing control accuracy.
Handles tough media pretty well
The ball edge passes closely across the seat during operation, creating a shearing action that helps reduce accumulation of fibers, solids, and process deposits.

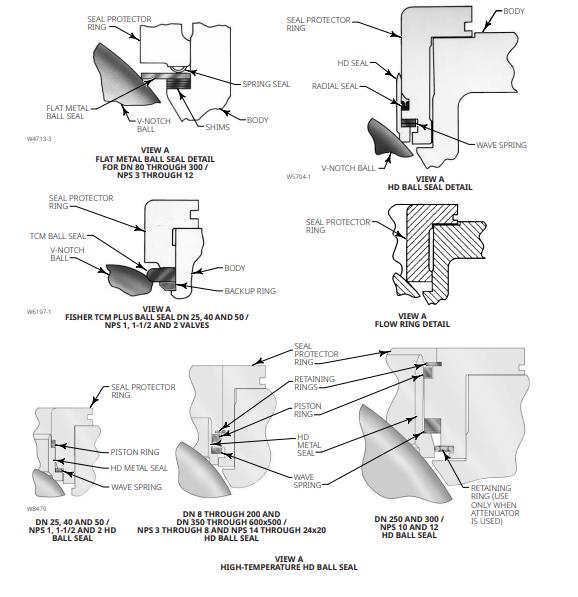

Soft seat or metal seat – you decide
Which seat you go with depends on what you need for shutoff, what temperatures you're dealing with, and the overall service conditions.
Integration with FIELDVUE Systems
The valve can be assembled with Fisher FIELDVUE digital valve controllers for diagnostics, calibration, and performance monitoring.
Key specifications
|
Item |
Description |
|
Parameter |
Specifications |
|
Certifications |
SIL,ATEX,CUTR,PED,CRN,Fugitive Emission,NACE |
|
Primary Applications |
Noise Suppression,Cavitation,Dirty Service,Corrosive, Low Flow,General Service |
|
Flow |
Equal Percentage |
|
Material |
Carbon Steel,Stainless Steel,Duplex,Alloy |
|
Temperature Range |
Standard |
|
Pressure Rating |
PN,ASME |
|
Connection Type |
Flanged |
|
Shut-off Class |
Class III(FCI 70-2),Class IV(FCI 70-2), Class VI(FCI 70-2), |
|
Valve Size |
NPS 1,1-1/2,2,3,4,6,8,10,20,24 |
|
Valve Size Standard |
NPS,DN |
Common Applications
- Refinery process units
- Gas processing facilities
- Chemical production plants
- Steam control systems
- Pulp and paper plants
- Water and wastewater treatment sites
- Mining and mineral processing operations
If your application has slurry, fibrous stuff, or suspended solids, the V150 is usually a solid fit.
FAQ
Q: Can this valve be used with a digital positioner?
A: Sure. A lot of assemblies come with a Fisher DVC6200 or DVC6200f digital valve controller. Just ask for it.
Q: What actuator is typically supplied with the V150?
A: You've got a few common ones – Fisher 1051, 1052, 1061, or 2052 rotary actuators. Really just depends on what you need.
Q: Why Choose us?
A: We provide upfront support and post-installation guidance.
We can provide you with an accurate quote based on the model number, detailed specifications, or nameplate photos.
We provide quotes with in 24 hours.
