Fisher Pressure Gauge | J500, J502, J511, J504, J506, J542 Models For Regulators And Control Valves
Fisher pressure gauges measure system pressure in gas, liquid, and industrial pipeline applications. These instruments pair with Fisher regulators, pressure reducers, and control valves to give operators a clear view of line pressure.
Pressure ranges cover 0–15 psig for low-pressure systems up to 0–400 psig for high-pressure service. Connection options include bottom, back, and top mount to fit different regulator and pipeline layouts.
Each gauge carries dual or triple scale markings (psi, bar, MPa) so operators read pressure in the unit their plant uses.
Products Description
Fisher pressure gauges belong to the Emerson Process Management instrument line. They serve as pressure monitoring devices across process plants, gas distribution systems, and industrial fluid handling.

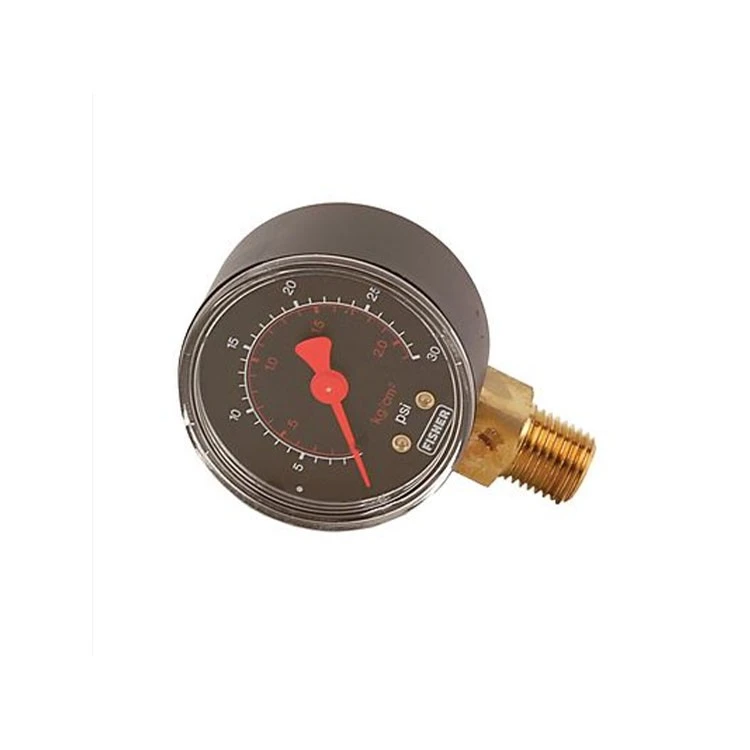

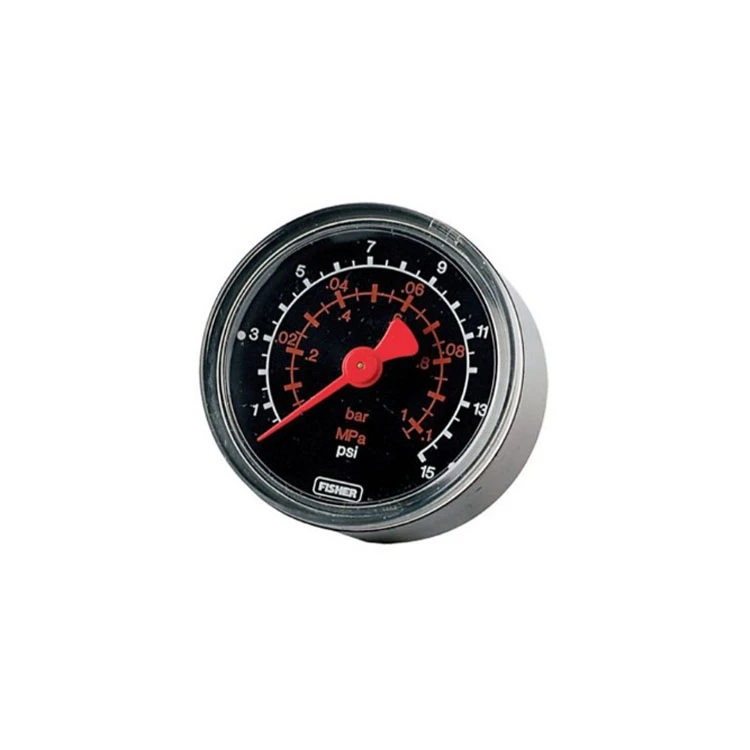

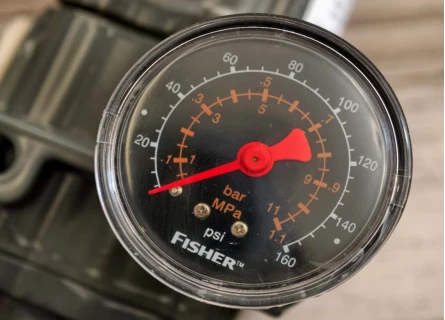

The gauge face uses a black dial with red pointer and white scale markings. Numbers and tick marks stay legible in plant lighting conditions. The metal case protects the movement from dust and moisture.
Operators mount these gauges on regulator inlet and outlet ports, control valve air supply lines, and process pipeline test points. The gauge gives a local pressure reading without power or wiring.
Core Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Pressure gauge |
| Brand | Fisher (Emerson Process Management) |
| Pressure Ranges | 0–15, 0–30, 0–60, 0–160, 0–300, 0–400 psig |
| Scale Units | psi, bar, MPa (dual or triple scale) |
| Connection Types | Bottom, back, top mount |
| Dial Face | Black dial, white markings, red pointer |
| Case Material | Metal |
| Application | Gas, liquid, industrial pipeline pressure monitoring |
| Compatibility | Fisher regulators, pressure reducers, control valves |
Model Selection Table
| Model | Pressure Range | Connection | Typical Use |
|---|---|---|---|
| J500 | 0–15 psig (0–1.0 bar) | Bottom / Back | Low-pressure monitoring, small gas systems, pipeline outlet |
| J502 | 0–60 psig (0–4.1 bar) | Bottom / Back | Medium-low pressure gas/liquid systems, inlet or outlet monitoring |
| J511 | 0–30 psig (0–2.1 bar) | Back connection | Medium-low pressure, compact installations |
| J504 | 0–160 psig (0–11.0 bar) | Bottom / Back | Medium-high pressure industrial pipelines |
| J506 | 0–300 psig (0–20.7 bar) | Bottom / Back | High-pressure systems, industrial compressed gases |
| J542 | 0–400 psig (0–27.6 bar) | Bottom connection | Maximum high-pressure monitoring, industrial safety systems |
Supplier Information
Century Weiye (Dalian) Control Equipment Co., Ltd. focuses on the supply of Fisher valve positioners. We have accumulated years-long experience in process-control instrument supply. Our business covers project clients across global regions. Local warehouse maintains stock of Fisher valve positioners for prompt shipment upon order confirmation.
Every Fisher pressure gauge order goes through a technical review: model, pressure range, connection type. We check these before quotation, not after shipment. Datasheets and inspection documents are available on request. We handle single-unit replacement, spare-part stocking, and bulk project procurement.
FAQ
Q: What pressure ranges do Fisher pressure gauges cover?
A: Fisher gauges cover 0–15 psig, 0–30 psig, 0–60 psig, 0–160 psig, 0–300 psig, and 0–400 psig.
Q: What connection types are available?
A: Bottom, back, and top mount connections are available. Specific models offer certain connection types; check the model selection table.
Q: Can Fisher pressure gauges measure both gas and liquid?
A: Yes. Fisher gauges work in gas, liquid, and industrial pipeline applications.
Q: Do the gauges require power?
A: No. These are mechanical gauges that give a local pressure reading without power or wiring.
Q: What scale units do the gauges show?
A: The dials carry dual or triple scale markings in psi, bar, and MPa.
Q: How do I choose the correct gauge model?
A: Match the pressure range to your system operating pressure (the gauge needle should sit in the middle 50% of the range during normal operation). Match the connection type to your regulator or pipeline port. Send us your regulator model or existing gauge part number and we confirm the selection.
Request a Quote
Get a configuration-verified quote.
Tell us: gauge model or pressure range, connection type, quantity. We reply with confirmed quotation and stock status.
