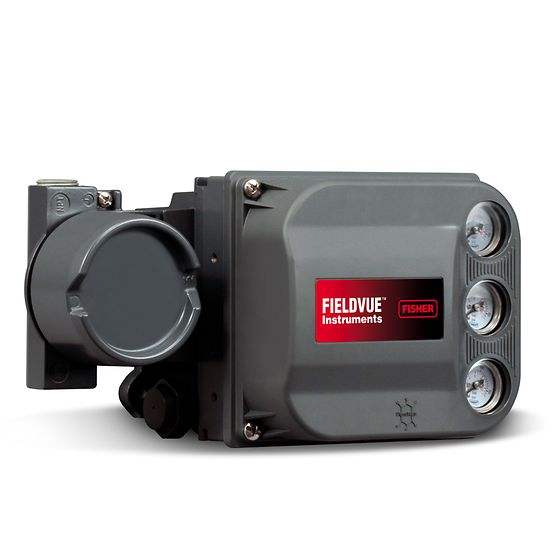

Fisher FIELDVUE DVC6200 Series Valve Positioner

Century Weiye (Dalian) Control Equipment Co., Ltd. is a professional supplier of Fisher DVC6200 series valve positioner. We offer original double-acting and single-acting Fisher DVC6200 valve positioners for industrial process control applications. These valve positioners feature reliable measurement performance and stable quality, and we maintain sufficient inventory while providing competitive pricing and attractive discounts. Welcome to contact us for a quotation on the Fisher DVC6200 valve positioner you require.



 If you're interested in this product, click Contact Us to request a quote, or email us directly at serena@valve-sjwy.com for inquiries.



Non-contact position feedback. The sensor measures valve travel with no physical contact to moving components. This eliminates linkage arm wear and vibration sensitivity.

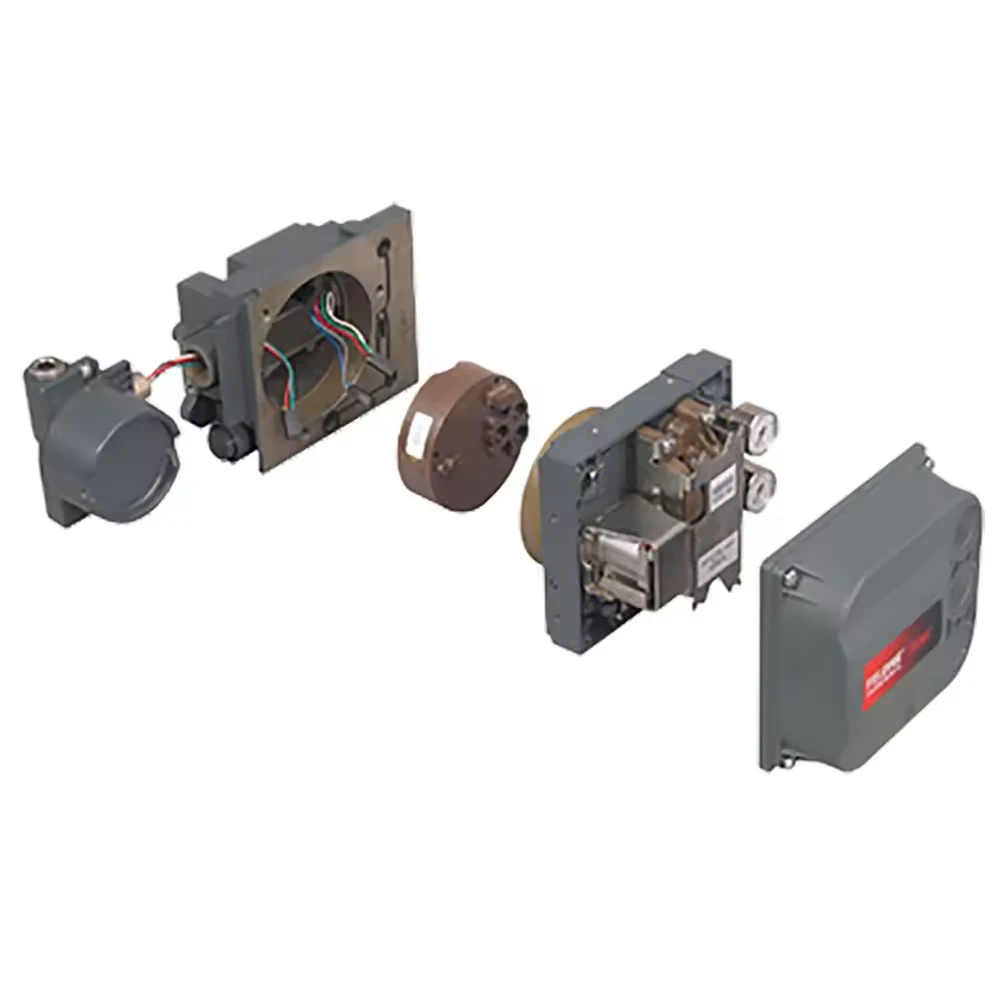

Modular internals. Circuit boards and the I/P converter can be removed for maintenance, no need to disconnect all field wiring and tubing.





Most units in the field are HART, built at one of three diagnostic levels.



• HC is the base version. It handles valve positioning and basic status reporting over HART.
• AD adds diagnostic test routines.
• PD adds online performance diagnostics that run while the valve stays in service.



All three speak the same protocol, but the firmware differs, and so does the software needed to read the data. An AD or PD won't drop in as a replacement for a same-size HC. Get the full model code before you order.

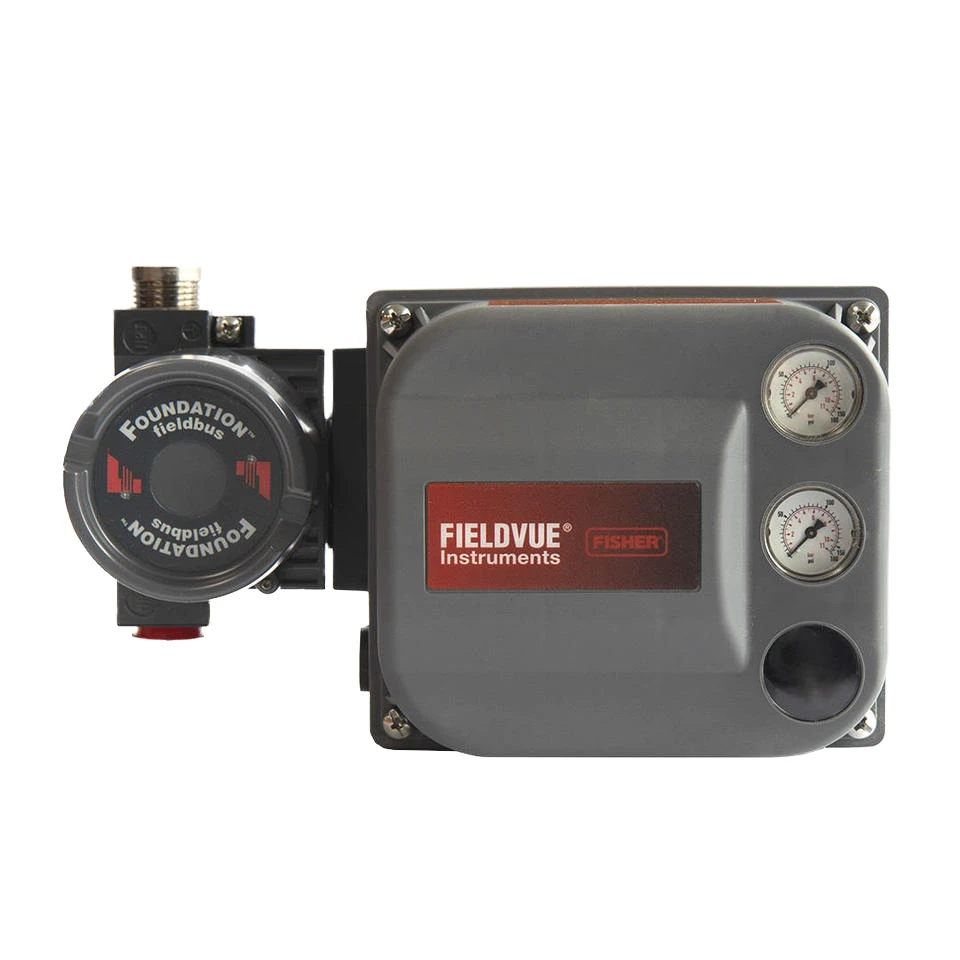

For a Fieldbus system, order the DVC6200f. It talks FOUNDATION Fieldbus; a HART DVC6200 can't connect to an FF host.

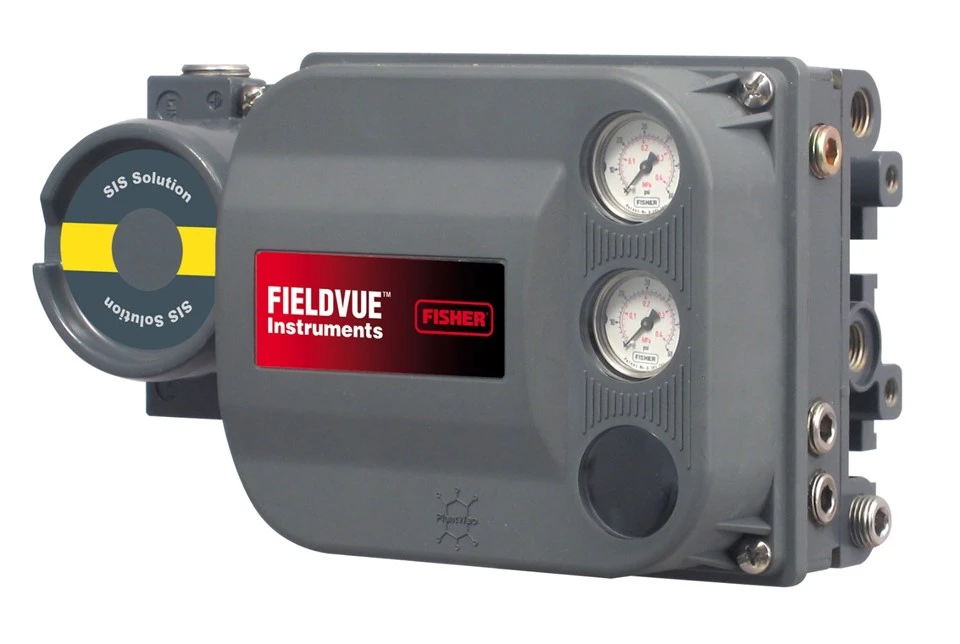

DVC6200 SIS is built for safety instrumented functions, including partial-stroke testing. The SIS tag on its own doesn't give your loop a SIL rating. That comes from the valve assembly, the documentation, and the system design, checked against your specific safety requirements.



DVC6200S is a standard controller with a stainless-steel housing, where the option applies. The S suffix covers the housing; other components may still be standard material. Use the order code to confirm the full material scope.



Remote-mount installations split the controller into two parts. The DVC6205 holds the electronics and mounts away from the valve. The DVC6215 is the feedback unit that stays on the valve. A replacement needs both units plus the matching mounting hardware. One unit alone can't replace an integral DVC6200.





Model / Configuration	Category	Core Function	Communication Protocol	Key Diagnostic Features	Key Attributes	Typical Applications
DVC6200 HC	Diagnostic Tier (Entry)	Basic HART communication & monitoring	HART	Core HART connectivity, travel deviation alarm, cycle counting, basic calibration; ValveLink software compatible for basic configuration	Entry-level digital functionality, remote access to core operating data	Standard process control loops, general process sections requiring basic monitoring
DVC6200 AD	Diagnostic Tier (Advanced)	Offline diagnostics & preventive maintenance	HART / FOUNDATION Fieldbus	All HC capabilities; plus offline diagnostics: step response testing, valve signature, dynamic error band, performance tuning	Offline valve health assessment, fault prediction capability	Critical process loops, preventive maintenance programs, scheduled valve inspection
DVC6200 PD	Diagnostic Tier (Performance)	In-service real-time diagnostics	HART / FOUNDATION Fieldbus	All AD capabilities; plus online in-service diagnostics: valve friction monitoring, real-time electrical/mechanical health assessment, solenoid testing	Real-time valve health monitoring without shutdown, predictive maintenance support	Critical plant assets, high-reliability processes, predictive maintenance schemes
DVC6200F	Protocol Variant	FOUNDATION Fieldbus digital communication	FOUNDATION Fieldbus	Matches HC/AD/PD tier capabilities (fieldbus hierarchy: FD / AD / PD)	Fully digital bidirectional bus communication, multi-variable synchronous transmission, high system integration	FOUNDATION Fieldbus plant architecture, bus-based DCS control systems
DVC6200 SIS	Safety Function Variant	Safety instrumented system certified	HART	Basic positioning functionality + safety loop certification; safety-grade diagnostic redundancy	Compliant with SIS standards, suitable for SIL-rated safety loops	Emergency shutdown (ESD) valves, safety interlock loops, SIS protection systems
DVC6200S	Material Variant	Corrosion-resistant stainless housing	HART / FOUNDATION Fieldbus (optional)	Matches the paired diagnostic tier (HC / AD / PD configurable)	316 stainless steel housing (standard unit uses low-copper aluminum alloy), enhanced corrosion resistance	Offshore platforms, coastal facilities, highly corrosive chemical environments









To help us check the right instrument, please send any available details:



• Full model number and product nameplate photo
• Existing part number or the model being replaced
• Communication protocol (HART or FOUNDATION Fieldbus, where applicable)
• Actuator type and mounting arrangement (integral or remote)
• Required material, hazardous-area approvals, and safety application requirements
• Quantity, destination country, and requested delivery schedule



Contact Century Weiye (Dalian) for a quotation, availability check, and configuration review. If the exact suffix or full order code is not available, send a clear nameplate photo and we will use it as the starting point for verification.



• +852 92039110.
• serena@valve-sjwy.com.





How do I get a price for a Fisher DVC6200?

Pricing is based on full model code, selected options, order quantity and shipping destination. Send us the order code or a clear nameplate photo, and we'll provide a quotation for your exact configuration.



Can you supply a DVC6200 replacement?

Yes. We verify compatibility against the full model code of your installed unit, including protocol, mounting type, actuator, approvals and diagnostic level. Even similar model numbers can have differences that prevent proper fit and function.



What is the difference between DVC6205 and DVC6215?

The DVC6205 is the remote-mount base unit with control electronics. The DVC6215 is the valve-mounted feedback unit. They operate as a matched pair; neither can replace a standard integral DVC6200 on its own.



Is the DVC6200S all stainless steel?

No. The "S" designation indicates a stainless steel housing option only. Remaining component materials are defined by the full order code – do not assume the entire unit is stainless steel.



Is the DVC6200 SIS suitable for every safety valve?

No. Suitability depends on the complete valve assembly, supporting documentation and the specific safety function. The SIS designation alone does not confer a SIL rating to the entire loop.
