The Fisher™ easy-e™ ED Control Valve is a cage-guided globe control valve designed for accurate throttling service in medium- and high-pressure industrial applications.

Send Inquiry

Product Introduction

Products Description

The Fisher ED Control Valve is designed to help maintain precise valve positioning throughout these changing operating conditions. Its cage-guided construction supports stable plug travel, while the balanced plug design reduces operating forces under higher pressure differentials. The result is smooth throttling performance, dependable control, and simplified maintenance throughout the valve's service life.

With multiple body materials, trim options, and pressure ratings available, the ED valve can be configured for a wide variety of industrial applications without changing the basic valve platform.

Technical Specifications

Item	Description
Valve Type	Cage-guided globe valve
Body Sizes	DN25–DN300 (1–12 in)
Pressure Class	ASME Class 150–600
Temperature Range	–29°C to 316°C (material dependent)
Flow Characteristics	Linear / Equal Percentage
Trim	Cavitation control, noise-attenuation, hardened trim
End Connections	Flanged, butt-weld, RTJ
Typical Media	High-pressure liquids, feedwater, hydrocarbons

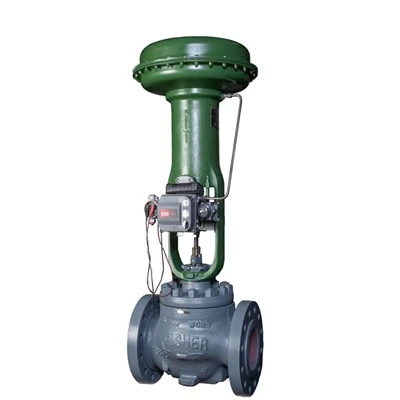

Fisher ED Control Valve

Core Features

Cage-Guided Trim

The cage-guided design helps maintain accurate valve plug alignment throughout its travel, contributing to stable flow control and repeatable performance.

Balanced Plug Design

The balanced valve plug reduces actuator force requirements under higher differential pressure, allowing smoother valve operation and improved control.

Designed for Medium and High Pressure Service

The ED valve is commonly selected for applications where higher operating pressures require stable throttling performance and dependable mechanical strength.

Modular Internal Construction

Internal trim components can be serviced or replaced more efficiently, helping reduce maintenance time and simplify routine inspections.

Flexible Configuration

Available in multiple body materials, pressure classes, flow characteristics, and end connection styles to accommodate different process requirements.

Long Service Life

The robust valve construction is designed for continuous industrial operation and reliable performance over extended service intervals.

Typical Applications

Oil & Gas Production
Petrochemical Plants
Chemical Processing
Refineries
Power Generation
Steam Systems
High Pressure Process Control
General Industrial Flow Control

Why Choose Us

Professional Product Support

Need help identifying a replacement valve? Our team can assist with model verification and configuration selection based on your valve nameplate or process requirements.

Quality Inspection Before Shipment

Every valve gets inspected before shipping - we check the build, confirm the config, and make sure it matches your order. No surprises.

Global Export Experience

We supply industrial control valves to customers worldwide with secure packaging, export documentation, and responsive communication throughout the purchasing process.

Fast Response

Need a price, a stock check, or help with a technical question? Reach out. We reply quickly and we'll work through your project with you.

product-800-692

FAQ

Q: What does the Fisher ED do?

A: It modulates flow - liquids, gases, steam, you name it - in industrial control loops. The main difference from the ET is that the ED is built for higher pressures.

Q: How does it compare to the ET?

A: Both are cageguided and share the same basic design. The ED covers higher pressure classes and generally uses heavier wall sections and different trim materials. The ET is fine for most generalpurpose throttling; the ED is what you spec when the pressure rating starts to matter more than the price tag.

Q: Which industries use it?

A: Oil and gas, petrochemicals, refining, chemical processing, power generation - basically anywhere you have highpressure steam, hydrocarbon feeds, or other tough services where a valve that leaks or sticks is not an option.

Q: How do I pick the right model?

A: Send us the nameplate from your current valve. No nameplate? Just pass along the fluid, flow rate, inlet pressure, outlet pressure, and temperature. We'll run the sizing and get back to you with the right configuration.
