Fisher DVC6200F Digital Valve Controller
Technical Specifications
|
Specification |
Details |
|
Model |
Fisher DVC6200F Digital Valve Controller |
|
Communication Protocol |
FOUNDATION™ Fieldbus |
|
Operating Principle |
Pneumatic |
|
Mounting Type |
Integral or Remote Mounting |
|
Supply Pressure |
Up to 145 psi (10 bar) |
|
Travel Range |
Linear: 0.25–23.875 in. (6.35–606 mm) Rotary: 45°–180° |
|
Operating Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Enclosure Rating |
IP66 / NEMA 4X |
|
Housing Material |
Low-Copper Aluminum Alloy |
|
Weight |
Approx. 3.5 kg (7.7 lb) |
Key Features of dvc 6200f
Reliability

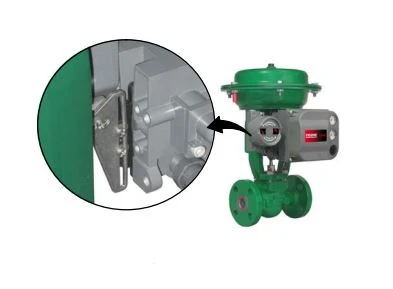

Linkage-Less Non‐Contact Position Feedback- The high performance, linkage-less feedback system eliminates physical contact between the valve stem and the DVC6200f. No contact means no wearing parts, so the cycle life is maximized.
Built to Survive- The field proven DVC6200f has fully encapsulated electronics that resist the effects of vibration, temperature, and corrosive atmospheres. A weather-tight wiring terminal box isolates field wiring connections from other areas of the instrument.
Performance
Accurate and Responsive- The two-stage positioner design provides quick response to large step changes and precise control for small setpoint changes.
Ease of Use
Enhanced Safety- The DVC6200f is a FOUNDATION Fieldbus communicating device, so information can be accessed anywhere along the loop. This flexibility can reduce exposure to hazardous environments and make it easier to evaluate valves in hard to reach locations.
Faster Commissioning- FOUNDATION fieldbus communications allows you to quickly commission loops with a variety of tools, either locally at the valve assembly or remotely.
Easy Maintenance- The DVC6200f is modular in design. Critical working components can be replaced without removing field wiring or pneumatic tubing.
Typical Applications
The Fisher DVC6200F is used across a wide range of industries, including:
Oil & Gas
- LNG Facilities
- Petrochemical Plants
- Power Generation
- Chemical Processing
- Water & Wastewater Treatment
Services We Can Provide
If you're looking to buy Fisher DVC6200F, here's what we can offer:
- Product Selection Support
- Sufficient stock
- Fast Quotation Service
- Worldwide Export Support
- If you're replacing an older positioner or upgrading an existing system, we'll help review compatibility requirements before ordering.
FAQ
Q: Which valves is the DVC6200F suitable for?
A: Primarily suitable for pneumatic control valves, it can be installed on linear and rotary actuators.
Q: Does it support the FOUNDATION™ Fieldbus system?
A: Yes. The DVC6200F is designed for FOUNDATION™ Fieldbus environments and can be directly connected to relevant control systems.
Q: Can it replace older positioners?
A: Generally, it can be replaced, but the final confirmation depends on the valve model, actuator configuration, and other details.
Q: Does it have valve diagnostic capabilities?
A: Yes, it provides diagnostic data while monitoring the valve operating status.
Q: How do I get a quote?
A: You can provide the model, quantity, or on-site equipment information, and we will provide a corresponding configuration and quotation plan based on your actual needs.
